Mini EDAC audio patchbay

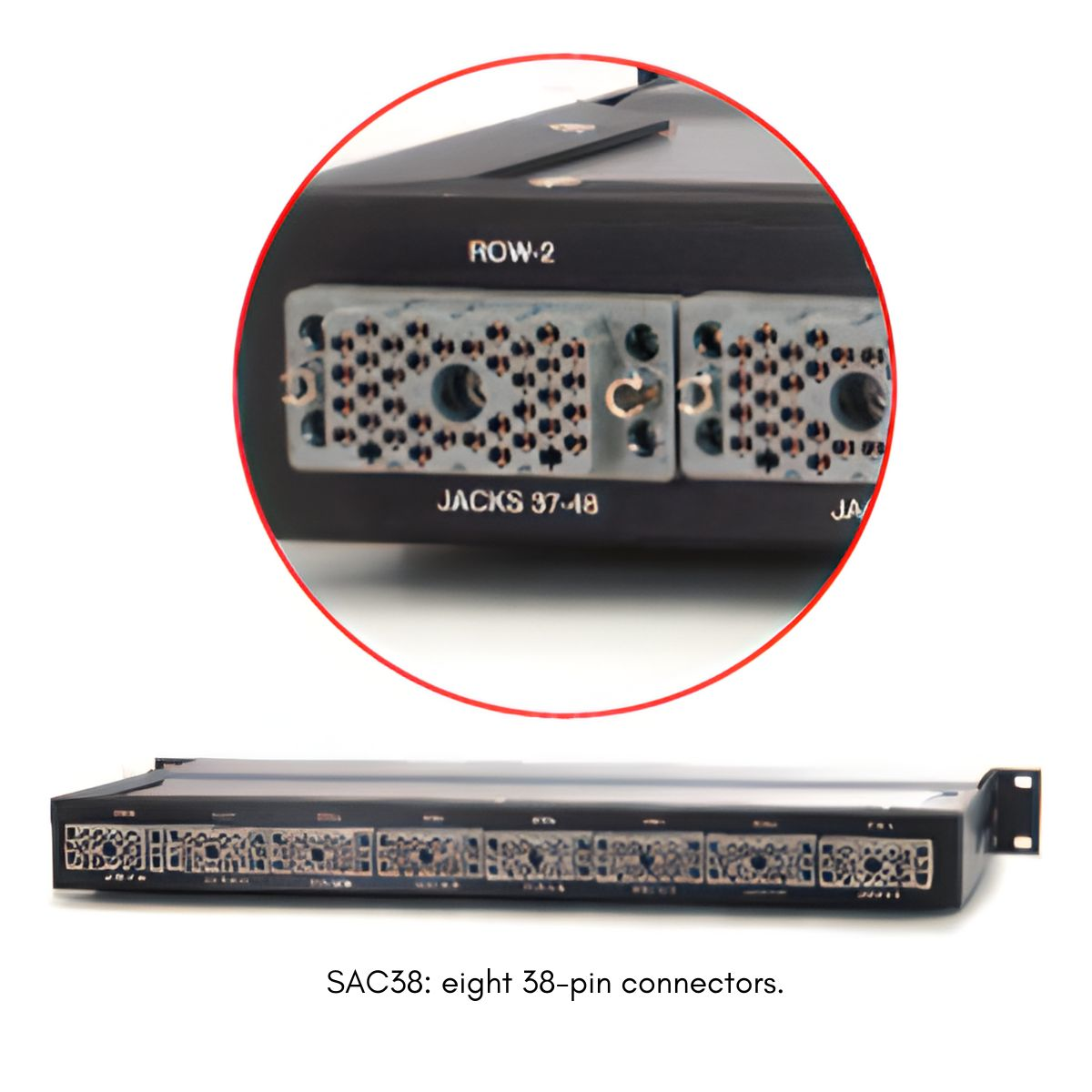

SAC38: eight 38-pin connectors for MINI EDAC patchbay closeup

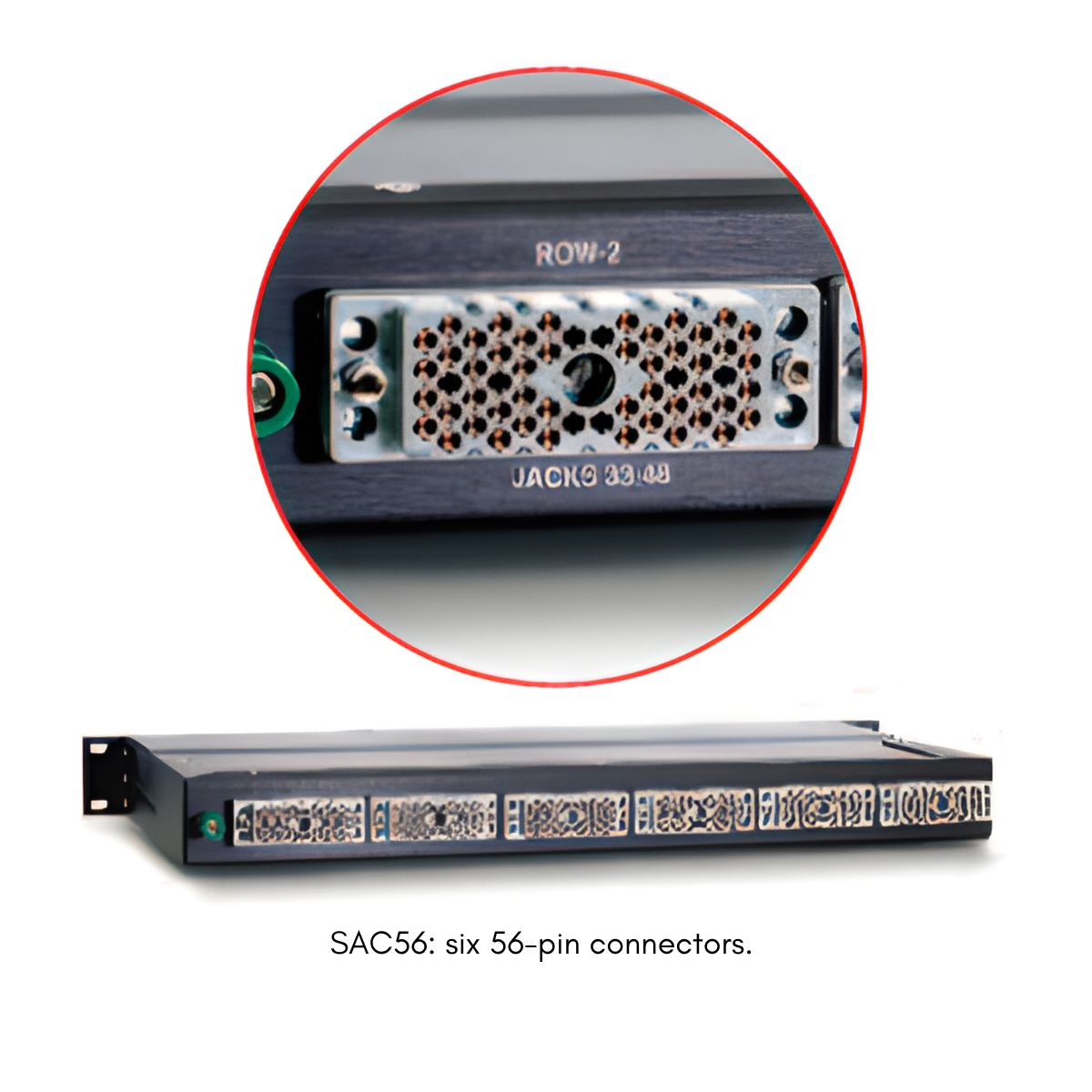

SAC56: six 56-pin connectors for MINI EDAC patchbay

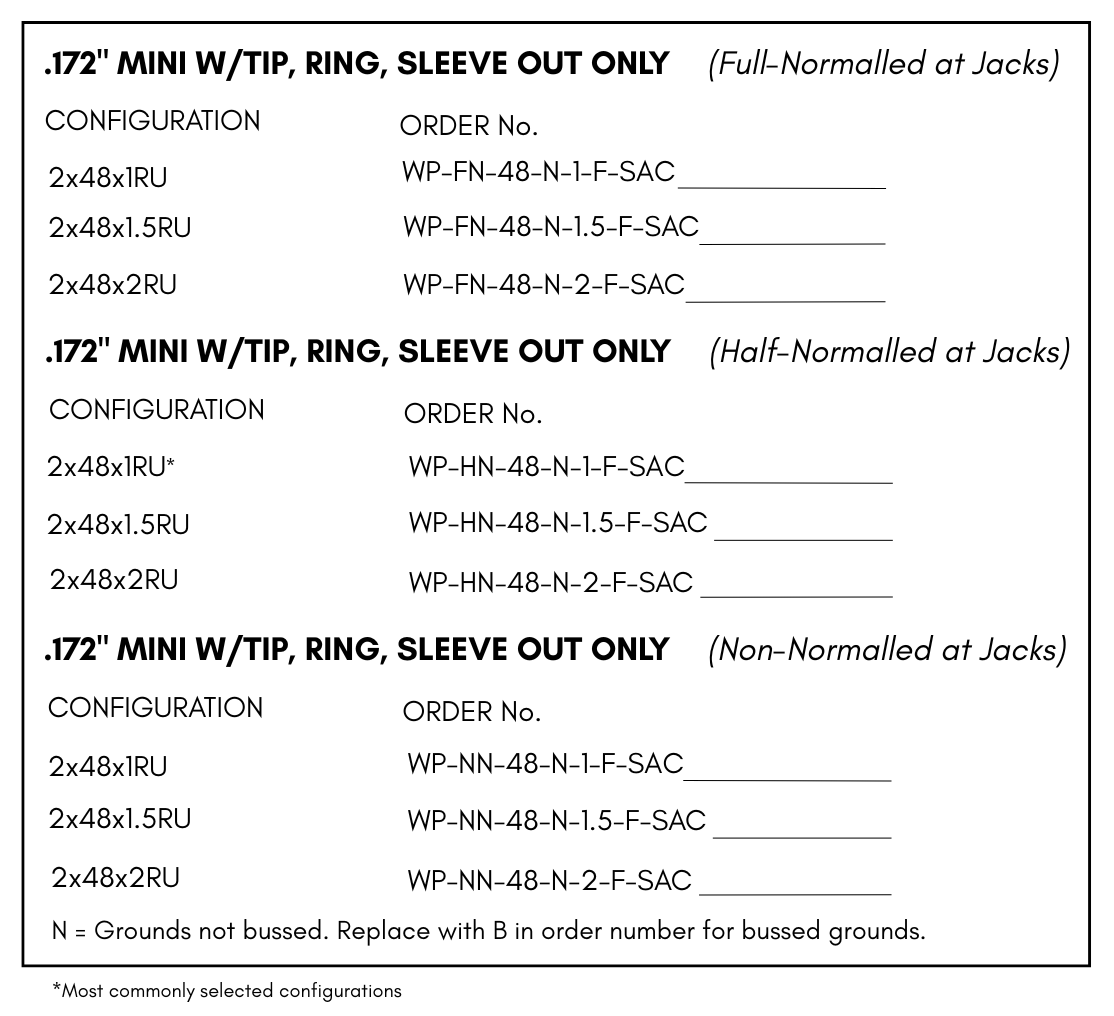

MINI EDAC Ordering Chart

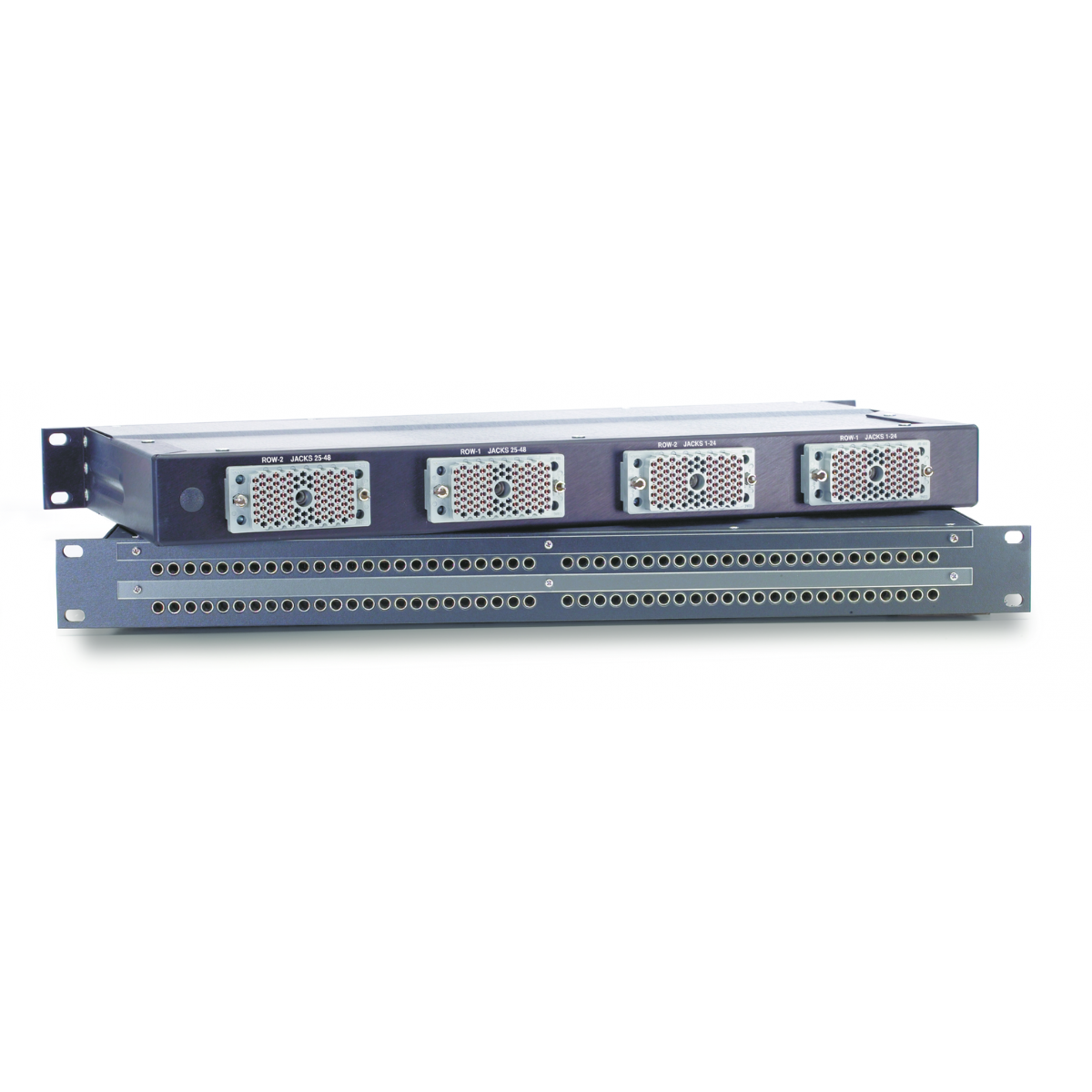

Mini/TT Audio Patchbay with EDAC Connector

MINI W/EDAC (2×48)

These connectorized MINI (TT/Bantam) patchbays incorporate EDAC 90-pin connectors for reliable, professional performance. A variety of backplate configurations are available depending on the normalling system, including six 56-pin connectors or eight 38-pin connectors.

SKU: Full-Normalled at Jacks: WP-FN-48-N-1-F-SAC, WP-FN-48-N-1.5-F-SAC, WP-FN-48-N-2-F-SAC. Half-Normalled at Jacks: WP-HN-48-N-1-F-SAC, WP-HN-48-N-1.5-F-SAC, WP-HN-48-N-2-F-SAC. Non-Normalled at Jacks: WP-NN-48-N-1-F-SAC, WP-NN-48-N-1.5-F-SAC, WP-NN-48-N-2-F-SAC
Category:

Description

EDAC HIGHLIGHTS

  • Unless otherwise specified, four 90-pin female connectors (SAC90) are supplied on the rear of all units.
  • Other options include size 56-pin (SAC56) connectors or eight 38-pin (SAC38) connectors.
  • Standard Audio Configuration (SAC) pinout is supplied unless otherwise specified.

MINI EDAC Ordering Chart

WP-FN-HN-NN-48P-_-_-1-SAC90 Spec Sheet:

Download PDF



WP-XX-48P-N-1-SAC38 – 2x48x1RU Spec Sheet:

Download PDF



WP-XX-48P-N-1-SAC56 Spec Sheet:

Download PDF
