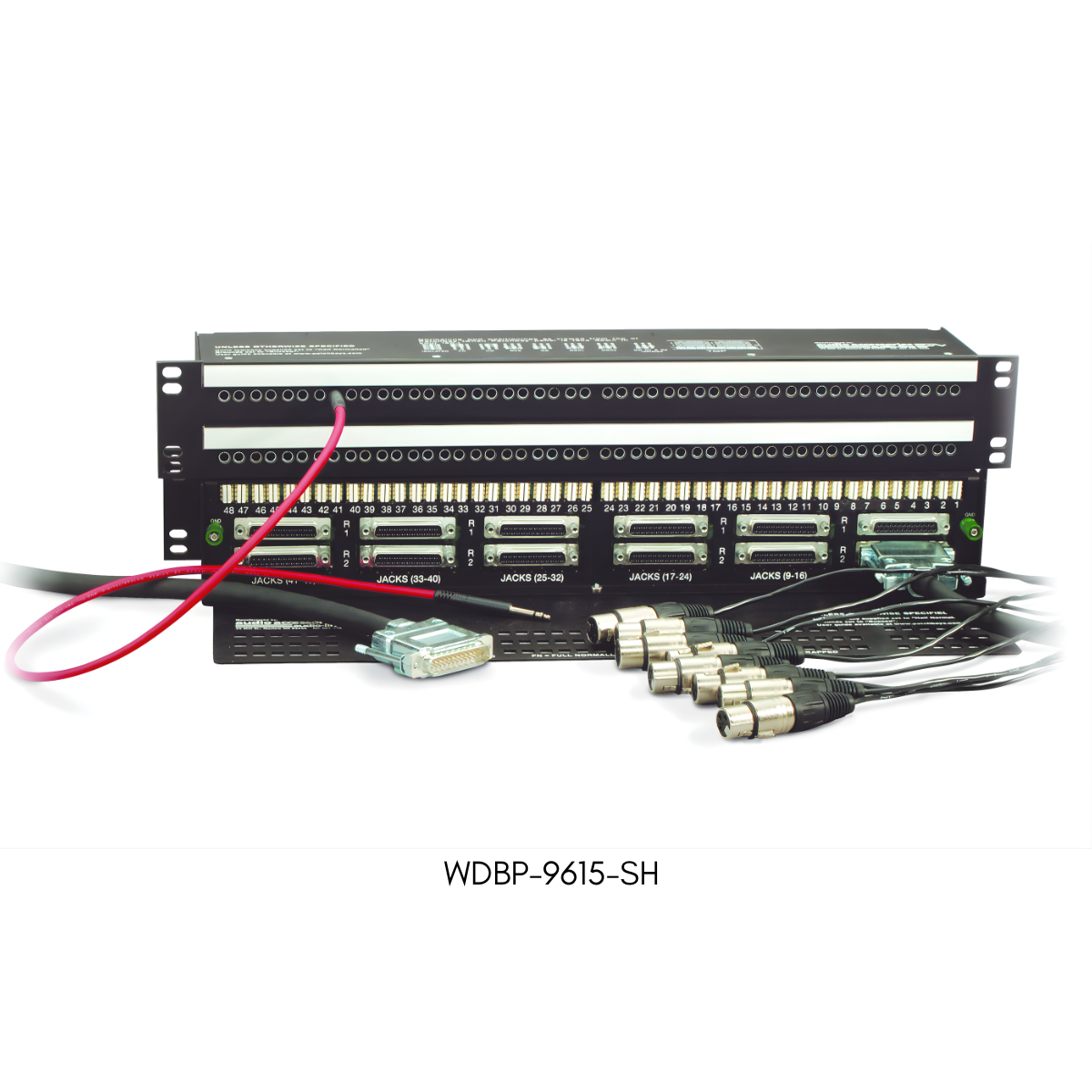

WDBP-9615-SH DB25 SHORTI Audio Patchbay

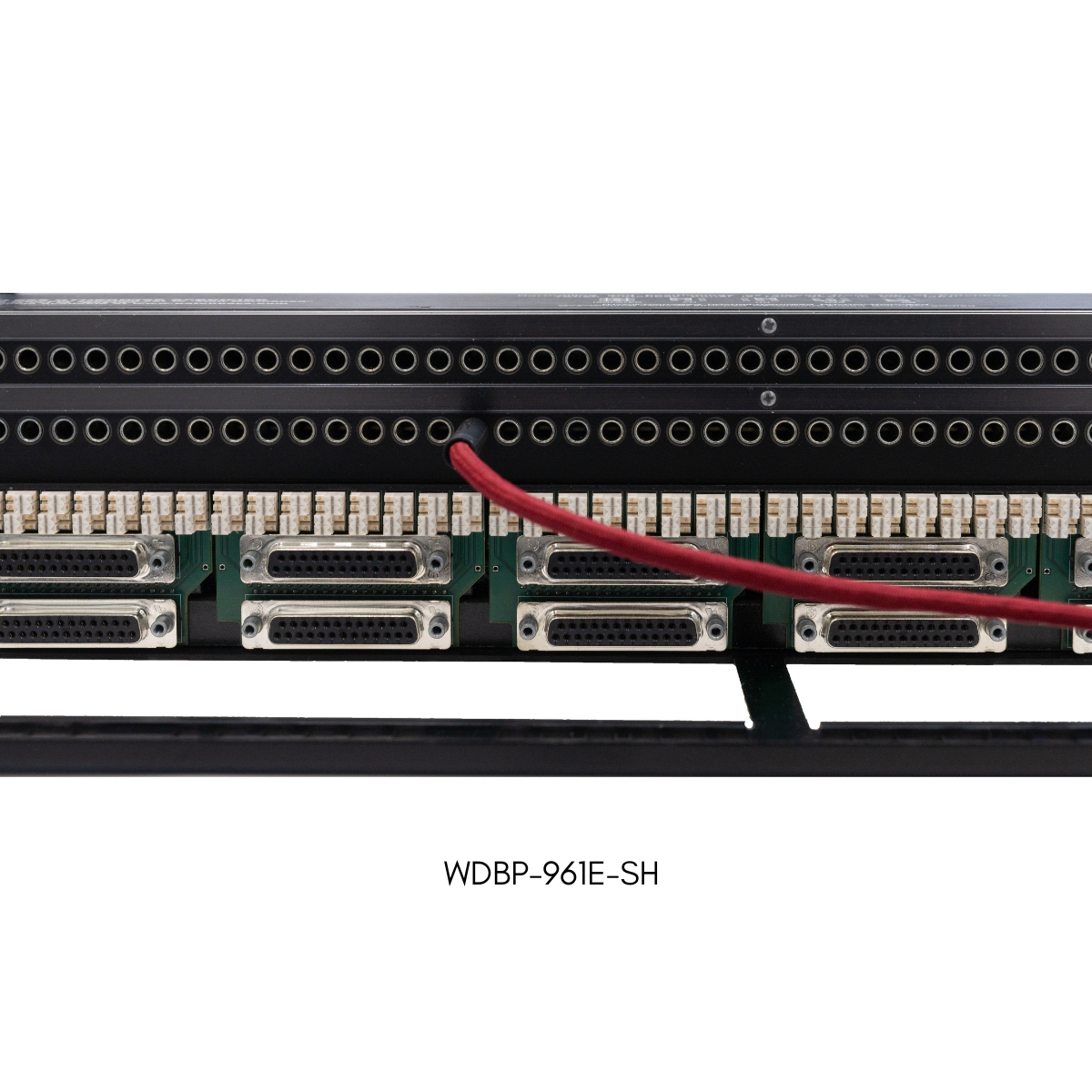

WDBP-961E-SH Audio Patchbay
WDBP-961E-SH
WDBP-242-SH

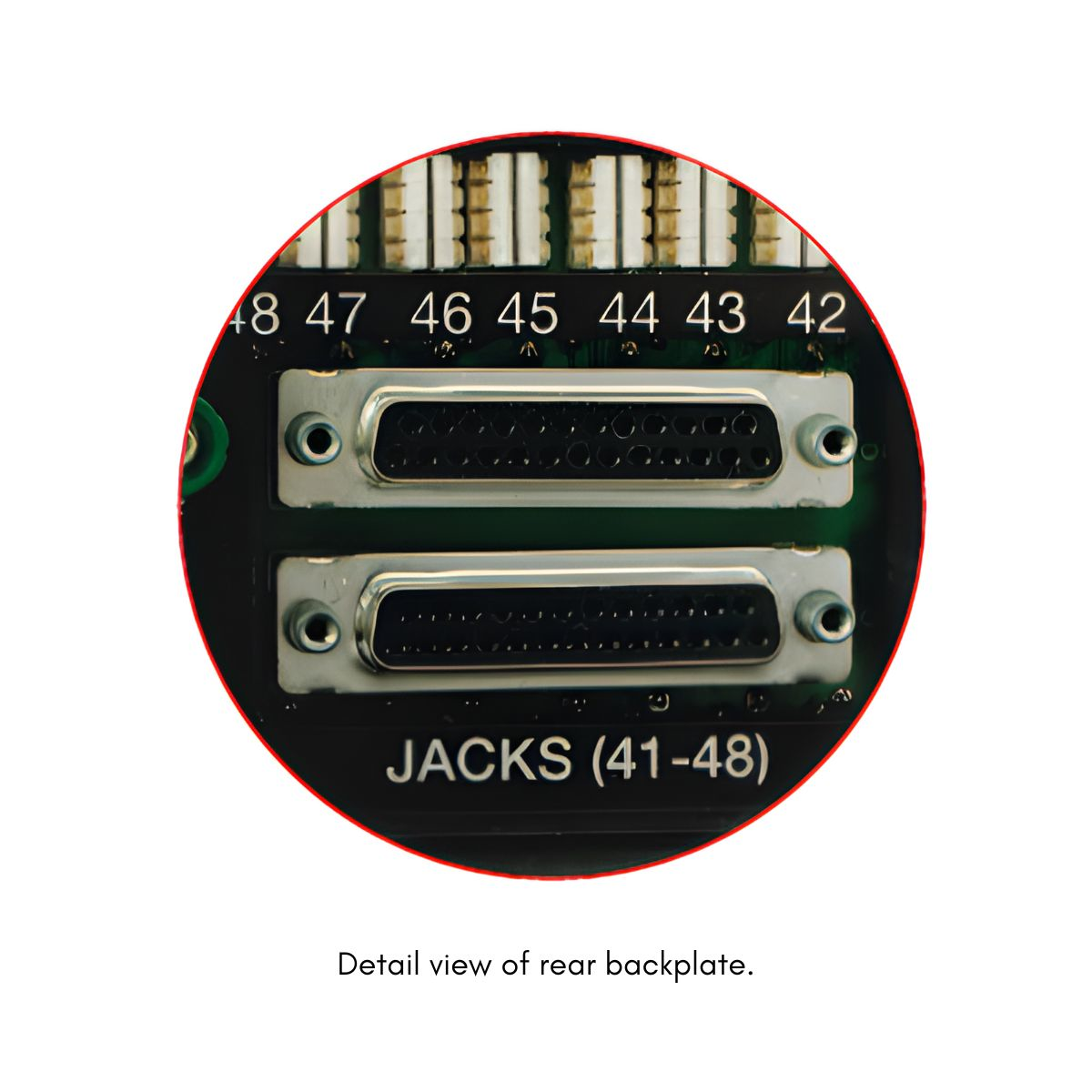

DB25 SHORTI detail view of rear backplate
DB25 Interconnect Cables
Quick-Switch Normalling Pod Settings DB25 SHORTI
DB25 SHORTI audio patchbay ordering chart

DB25 SHORTI Audio Patchbay

MINI SHORTI DB25 (D-Sub)

This 2×48 audio patchbay is wired to DB25 connectors. This 2×48 audio patchbay is wired to DB25 connectors and built for exceptional flexibility in any setup. Featuring Audio Accessories’ exclusive Quick-Switch™ normalling system, which allows you to easily configure individual normal and grounds on a per-jack-pair basis. This enables you to full-normal (FN), half-normal (HN), or non-normal (NN) by sliding the switches into the appropriate position. Grounding options include isolated, bussed, or grounds vertically strapped (GVS), giving you complete control over your configuration.

SKU: WDBP-641-SH, WDBP-961E-SH, WDBP-9615-SH
Category: , ,

Description

DB25 MINI SHORTI HIGHLIGHTS

  • Available in 1RU or 1.5RU
  • Tip, Ring, and Sleeve of each jack wired out to a DB25 female connector (8 jacks in each)
  • DB25 Connector pinned out for ProTools interface
  • Cabling support tray for bunding down incoming cables

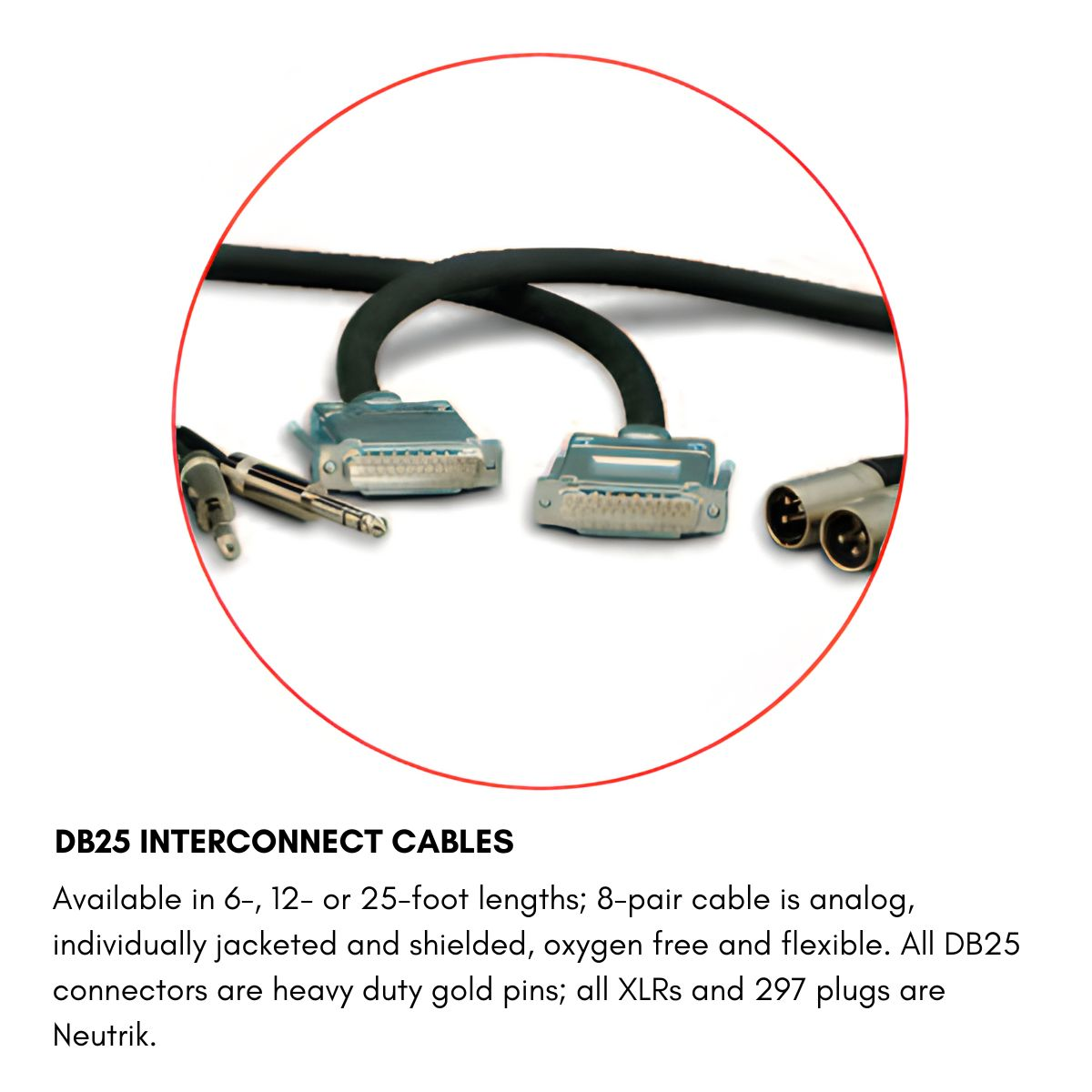

DB25 INTERCONNECT CABLES
Pair your patchbay with our premium DB25 interconnect cables, available in 6-,12-, or 25-foot lengths. These 8-pair cables are analog, individually jacketed and shielded, oxygen-free, and highly flexible. All DB25 connectors feature heavy-duty gold pins, while all XLRs and 297 plugs are Neutrik for maximum durability and signal integrity. Consult factory for your cabling needs.

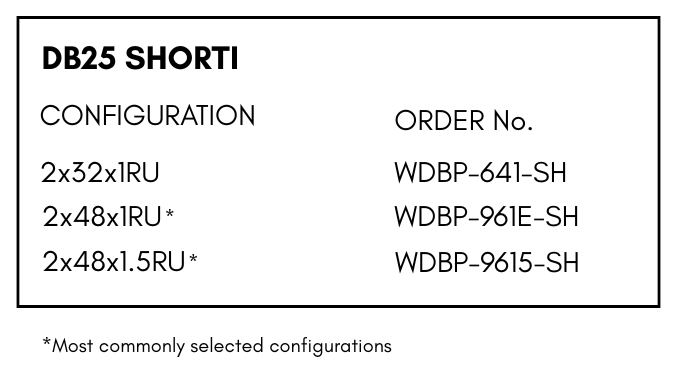

DB25 SHORTI audio patchbay ordering chart



DB25 DEALERS

Providence Sound and Vision Audio Accessories dealersAudio Accessories dealer Guitar CenterAudio Accessories dealer Redco

Audio Accessories dealer Vintage King Audio Accessories dealer Audio DAWgStudio Economik Audio Accessories dealer

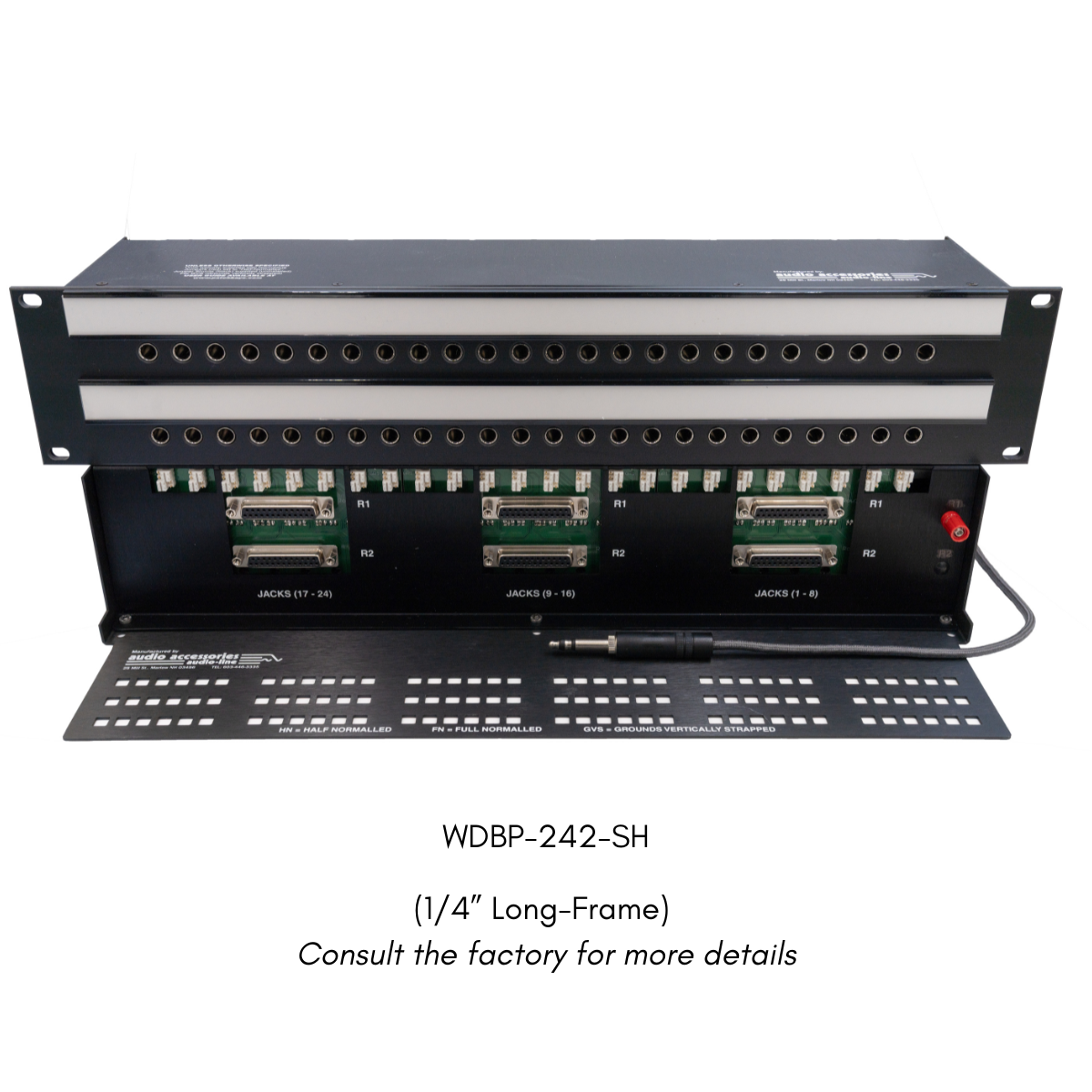

WDBP-242-SH 2x24x2RU Spec Sheet:

Download PDF



WDBP-641E-SH 2x32x1RU Spec Sheet:

Download PDF

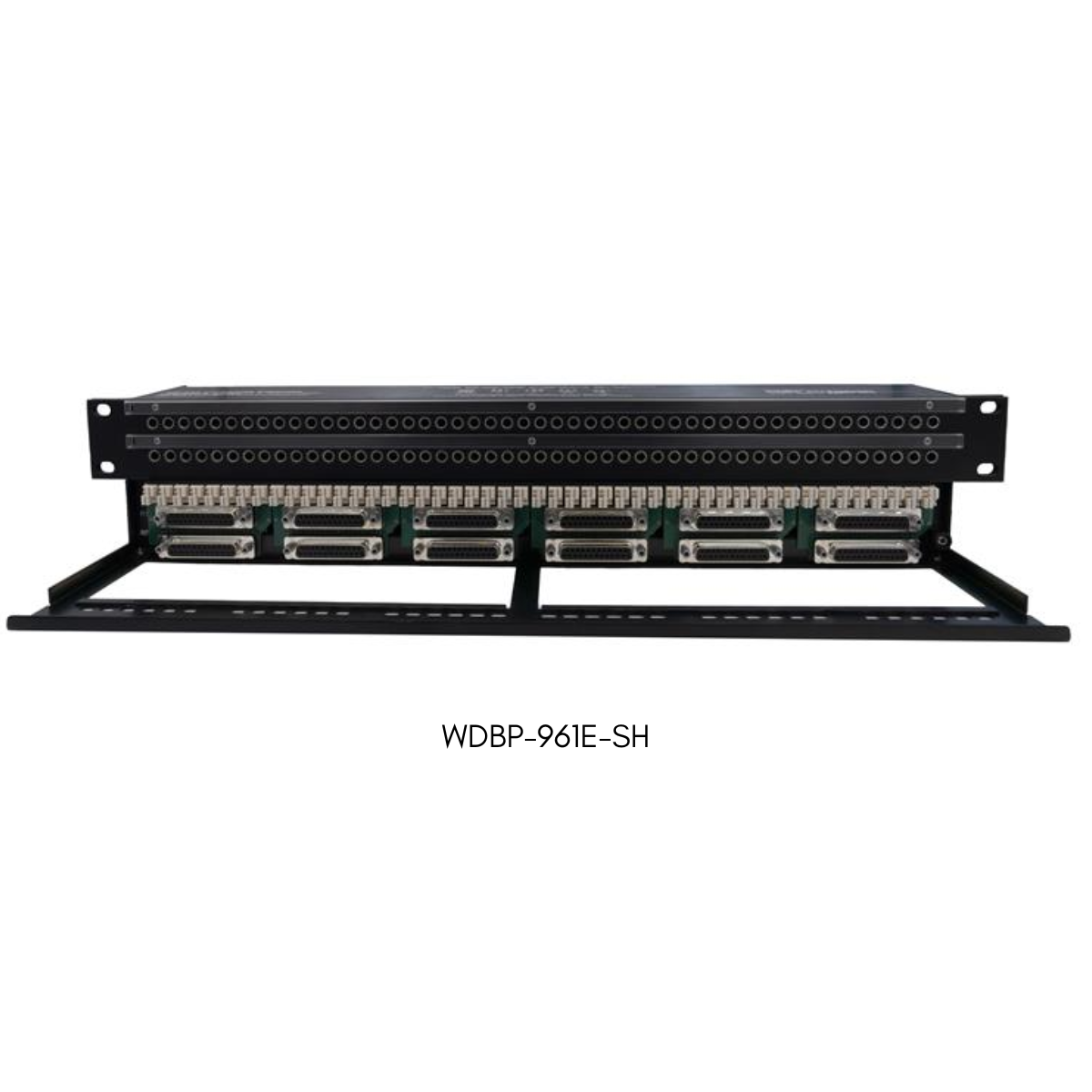

WDBP-961E-SH-2x48x1RU Spec Sheet:

Download PDF



WDBP-9615-SH 2x48x1.5RU Spec Sheet:

Download PDF
