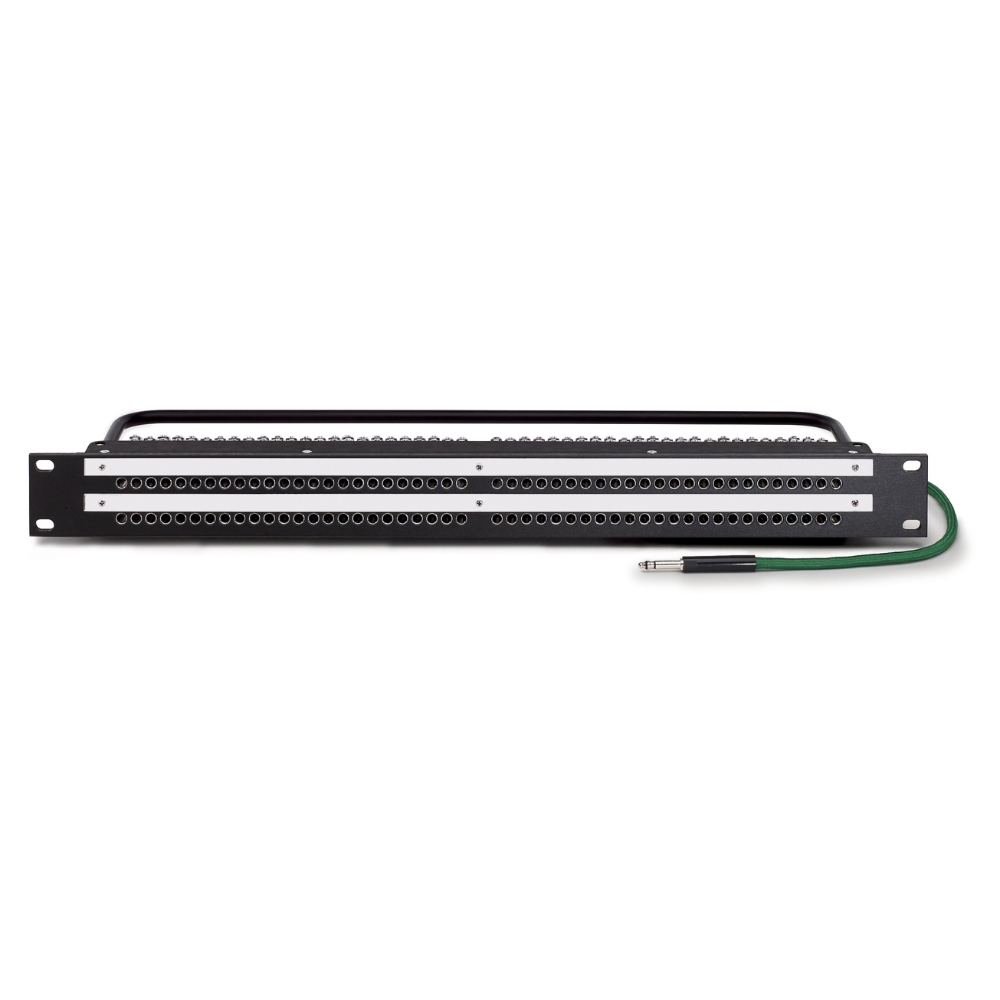

Mini Bantam/TT patchbay with cord
Mini Bantam/TT Audio Patchbay - Image 2

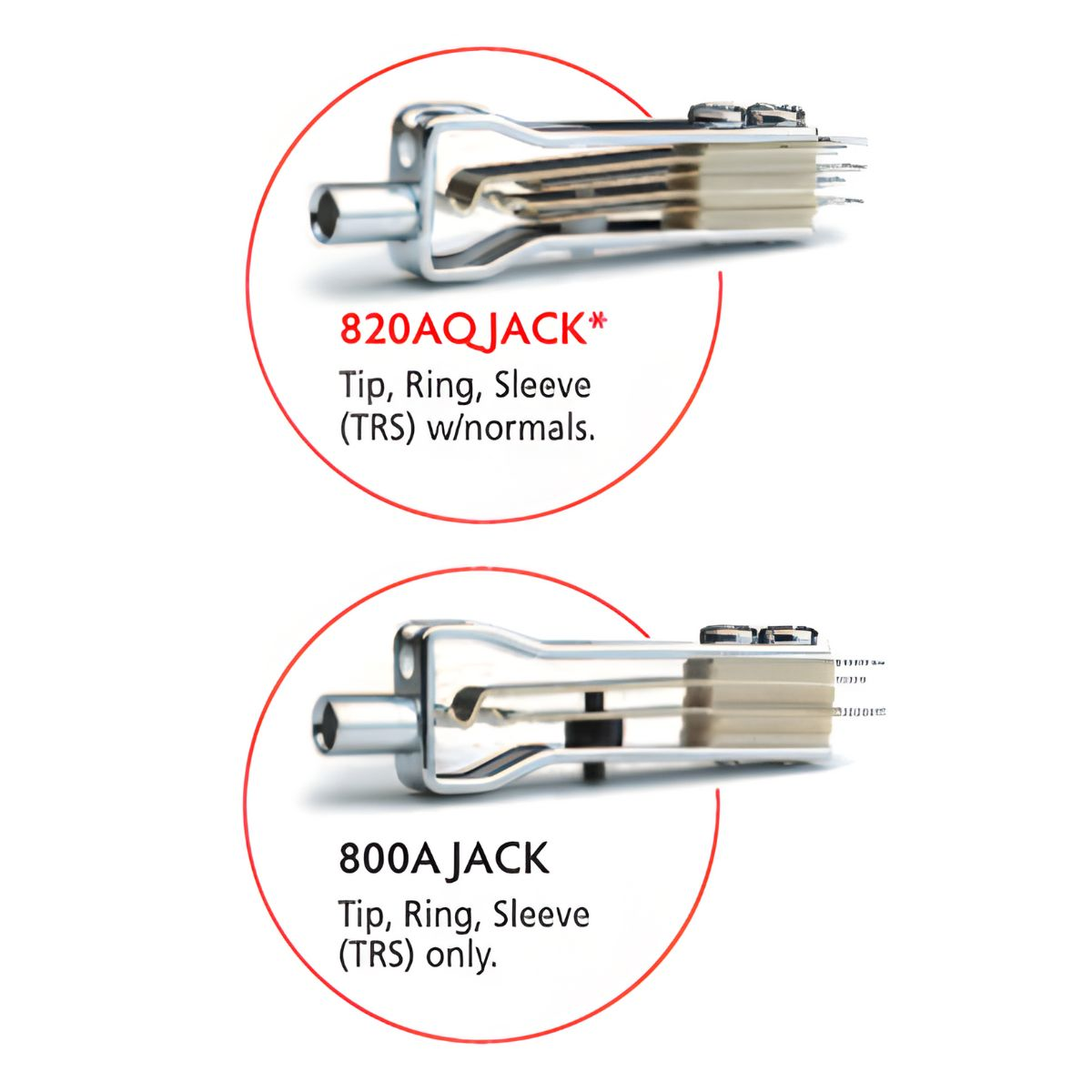

Audio jacks for MINI Bantam/TT
2x48 MINI Bantam/TT audio patchbay ordering chart

Mini Bantam/TT Audio Patchbay

Solder Tab (2×48)

Our most popular audio patchbay, the MINI (Bantam/TT), has 48 jacks per row, these patchbays maximize rack space. Especially valuable in mobile units where every inch counts. Each one is manufactured from start to finish in Marlow, New Hampshire, ensuring the highest quality and reliability.

SKU: 48P12A/Type 1, 48E12A/Type 1
Category:

Description

MINI HIGHLIGHTS

JACKS

  • Western Electric #1 gold Alloy contacts.
  • Hot-solder-dipped terminals.
  • Offset ground terminals for bussing of grounds available.
  • Nylon support bumpers ensure solid contact.
  • Jack frame and bushing are plated with copper, nickel, and bright chrome.

PANELS

  • Panels come equipped with EIA mounting slots and tie bar.
  • All one rack-unit (1RU) panels (1 ¾”) come standard with 2-line designation strips.
  • All two rack-unit (2RU) panels (3 ½”) come standard with 4-line designation strips.

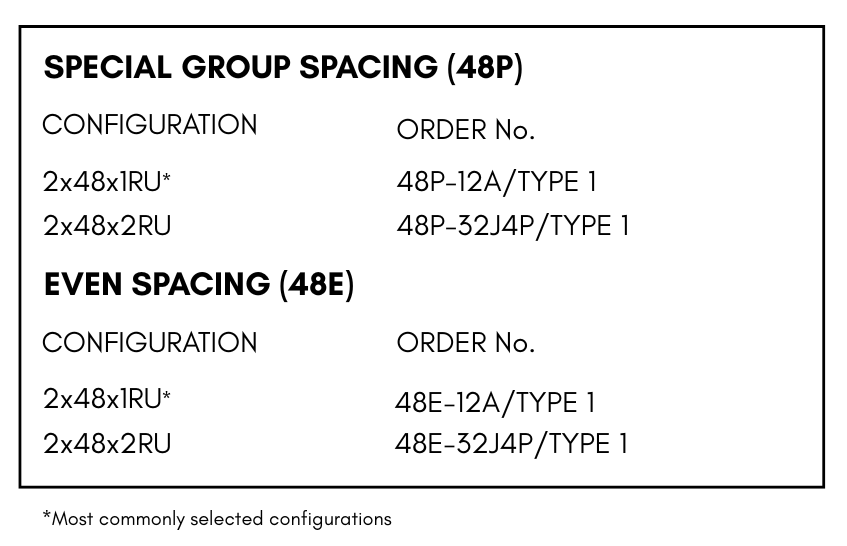

2x48 MINI Bantam/TT audio patchbay ordering chart

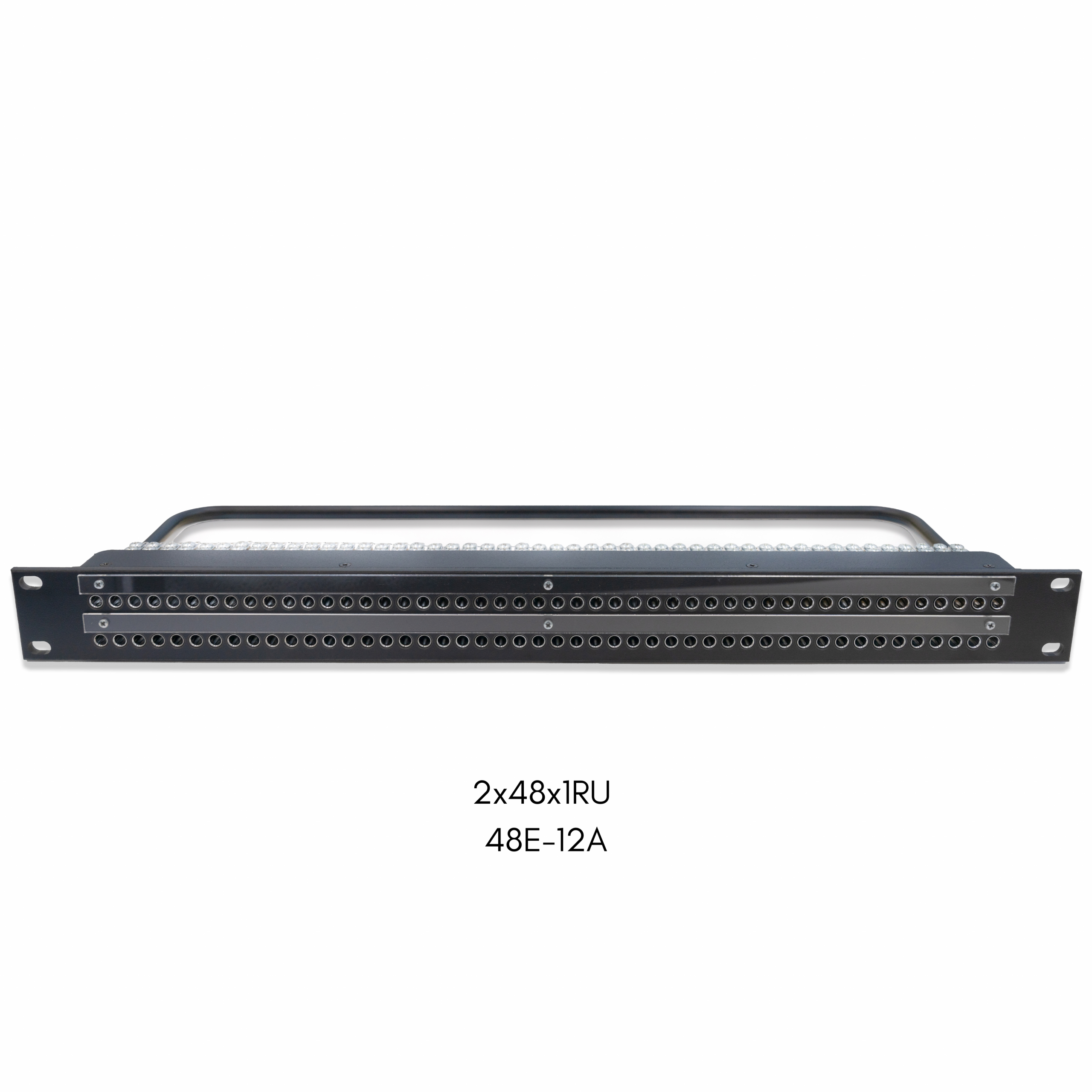

48E-12A Type 1 2x48x1RU Spec Sheet:

Download PDF



48P-12A Type 1 2x48x1RU Spec Sheet:

Download PDF
