2x26x1RU (Order No. WEP-261-SH)
TRS out only; Quick-Switch™ normalling. For use with analog or digital.

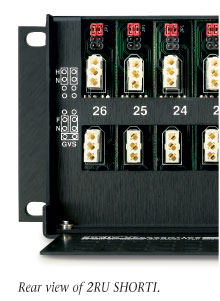

We’ve incorporated Quick-Switch™ in our line of 1/4” Long-Frame SHORTI patchbays. Offered in 1RU and 2RU, these 1/4' Long-Frame patchbays have the Tip, Ring, and Sleeve of each jack brought out to individual 3-Pin EDAC connectors. It’s mounted on the rear of a 4-inch-deep SHORTI box, with a cabling support tray behind for bundling incoming cables.

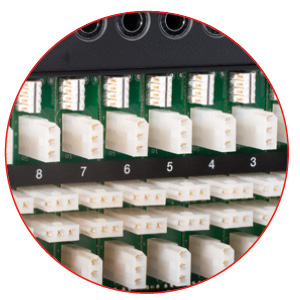

The Quick-Switch™ normalling pod (located on the rear of the unit) allows the individual normals to be set on a per jack-pair basis. By positioning the Quick-Switch™ shunts to the proper locations, you can select full-normal (FN), half-normal (HN), non-normal (NN), or grounds vertically strapped (GVS).

But the real flexibility is the ease with which you can re-configure the normalling. If you need to change any normal, simply pull the panel out from the front, and move the Quick-Switch™ shunt to the desired setting.


WEP-262EO-SH-JSK
(2x26 TO 3-PIN CONNECTORS ALL CONNECTIONS OUT)

PDFDOWNLOAD A DETAILED VIEW

2x26x2RU (Order No. WEP-262EO-SH-JSK)
Most common. (This is a direct replacement for WEP-EO-C-26-N-2-D)





1/4” SHORTI
highlights

• 52 3-Pin male mating connectors (E3M) and 156 crimp pins
supplied with panel.


• All units shipped half-normalled unless otherwise specified.


• We suggest leaving a 1-foot service loop for ease of changing normalling.

• For bussed grounds, specify when ordering. Note that once these units are bussed, they
cannot be altered.

QUICK-SWITCH™
NORMALLING POD
SHUNT SETTINGS

FN=Full-Normalled
HN=Half-Normalled (Row 1 to Row 2)

NN=Non-Normalled
GVS=Grounds Vertically Strapped


2x26x2RU (Order No. WEP-262-SH)
TRS out only; Quick-Switch™ normalling. For use with analog or digital.
