2x26x2RU
(Order No. WEP-262-SHSN)
Sleeve-normal unit. For use with analog or digital
If
you’re after a Sleeve-normal patchbay, or a unit
with all connections out (Everything Out - EO), consider

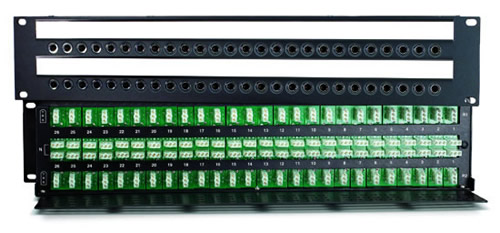

this SHORTI. A 2x26x2RU, 1/4” Long-Frame MAXI patchbay
with Tip, Ring, Sleeve, Tip-normal, Ring-normal, and Sleeve-normal
of each jack all brought out to individual 3-Pin EDAC
connectors, is mounted on the rear of a 4-inch-deep SHORTI
box, with a cabling support tray behind for bundling incoming
cables.
From
here you have many options. You can, for example, full-normal/sleeve-normal
the unit by installing a pre-made jumper (supplied with
panel). You can just full-normal (FN) the unit by simply
cutting out the sleeve-normal jumper. You can half-normal
(HN) the unit by purchasing a half-normalled split jumper.
Or you can leave it non-normalled (NN) by not installing
any jumpers.
|
|
SLEEVE
NORMALLING
highlights
• 52 3-Pin male mating connectors (E3M) and 156 crimp
pinssupplied with panel.
•
We suggest leaving a 1-foot service loop for ease of changing
normalling.
•
For bussed grounds, specify when ordering. Note that once
these units are bussed, they cannot be altered.
JUMPER
options
Internal
Normal Jumper.
26 internal normalling jumpers supplied with panel.
Half-Normal
Split Jumper.
Unique to the WEP-262-SHSN panel. Order separately.
|
