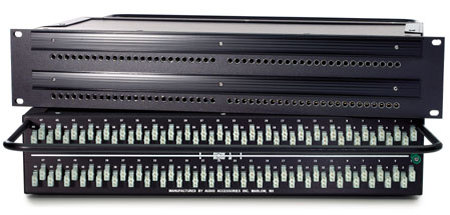

2x48x2RU (WEP-HN-C-48-N-2-A)
Most common.

If it’s flexibility you’re looking for, 3-Pin connectors are often the best choice because you can quickly reconfigure jacks at the connector. Our line includes MINI (TT/Bantam), 1/4” Long-Frame (MAXI) and our exclusive SKINI patchbays wired to EDAC/ELCO 3-Pin connectors. Both self-contained (most common) and harnessed cable versions are available.

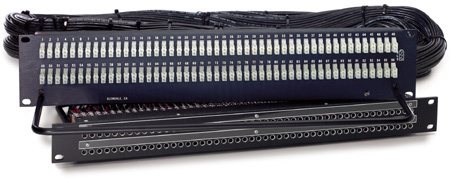

2x48x1RU (WEP-HN-H4-48-N-1-A)

3-Pin
highlights

• Unit incorporates a unisex crimp-able EDAC/ELCO pin.

• Quick reconfiguration of jacks via the connector.

• You can choose a self-contained unit (most common) or harnessed cable version at no additional cost.

• 4 ft. cables are standard. Longer cables available for extra charge.

• All units are supplied with mating connectors and pins.

• EDAC or ELCO crimp tools available for crimping your pins.

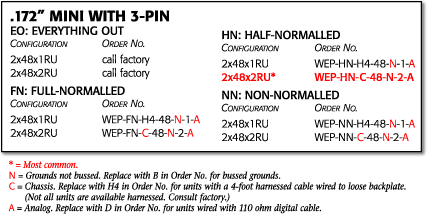

Normalling
info

• EO=Tip, Ring, Sleeve and normals brought out to connectors, everything out.

• FN=Tip, Ring, Sleeve only out to connectors, full-normalled at jacks.

• HN=Tip, Ring, Sleeve only out to connectors, half-normalled at jacks.

• NN=Tip, Ring, Sleeve only out to connectors, non-normalled at jacks.

Clean, easy, and simple backplate layout.
