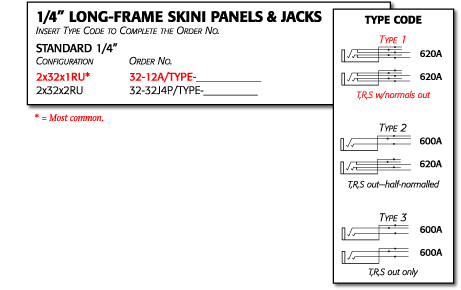

2x32x1RU (32-12A/TYPE 1)
Most common.

Exclusive! Audio Accessories is the only company to manufacture this streamlined 1/4” Long-Frame SKINI jack. We developed them for our many 1/4” patchbay users who need more than 24 or 26 jacks per row in a standard 19” panel. The SKINI jack design lets you fit 32 jacks per row, for additional patching capability without using up valuable rack space. These jacks are mechanically and electrically the same as our full-size Audio-Line 1/4” MAXI jacks—the only difference is the narrower SKINI jack profile.




600A JACK
Tip, Ring, Sleeve (TRS) only.

620A JACK
Tip, Ring, Sleeve (TRS) with normals (most common).








Panel
highlights

• Panels come equipped with EIA mounting slots and tie bar.

• The SKINI panel holds 64 1/4” Long-Frame patch points in a standard one rack-unit 19” panel.

• All one rack-unit (1RU) panels (1-3/4”) come standard with 2-line designation strips.

• All two rack-unit (2RU) panels (3-1/2”) come standard with 4-line designation strips.

Jack
highlights

• 078” Western Electric #1 gold alloy contacts.

• Hot-solder-dipped terminals, fanned for ease in wiring.

• Additional ground terminal, offset for busbar.

• Nylon support bumper ensures solid contact.

• Jack frame and bushing are nickel-plated.
