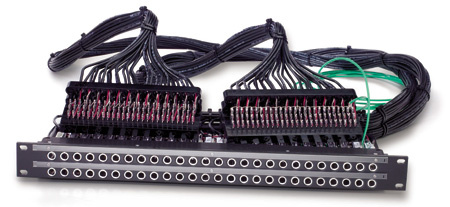

MINI wired to S66 Punchdown Blocks.

Just like the ones your local phone company (whoever that is!) uses, these alternative punchdown units are suitable for any installation.






MINI wired to Stub Ends.

With Stub Ends (pigtails), either you or we can provide the connections at the other end. Typically supplied with a 6-foot cable; longer cabling is also available. All harnessed bundles are numbered for your convenience.

S66 PUNCHDOWN BLOCKS

STUB ENDS

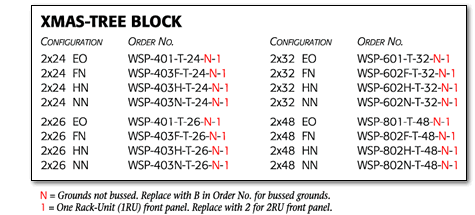

Normalling
info

EO=Tip, Ring, Sleeve and normals brought out to blocks, everything out.

FN=Tip, Ring, Sleeve only out to blocks, full-normalled at jacks.

HN=Tip, Ring, Sleeve only out to blocks, half-normalled at jacks.

NN=Tip, Ring, Sleeve only out to blocks, non-normalled at jacks.

Back to top

S66 Type Punchdown highlights

Uses standard Telco-type insertion tool.

Suitable for 22 AWG solid or 22 AWG standard.

Available in all jacks-per-row configurations.

Normalling
info

See above.

Back to top

Stub Ends
highlights

For cabling over 12 feet we typically use a multi-connector snake cable.

We can prewire XLRs, 297 plugs, or whatever connectors you require on the ends of your stub end cable(s). Call factory for details.

Normalling
info

EO=Tip, Ring, Sleeve and normals brought out to stub ends, everything out.

FN=Tip, Ring, Sleeve only out to stub ends, full-normalled at jacks.

HN=Tip, Ring, Sleeve only out to stub ends, half-normalled at jacks.

NN=Tip, Ring, Sleeve only out to stub ends, non-normalled at jacks.

Back to top
