MINI SHORTI Quick-Switch to DB25/3-Pin

Grounding Options
Normalling Options

Contact Us



List Price $1,256.00 2x48x1.5RU (Order No. WDBP-9615-SH)
TRS out only to DB25 Female Connectors; Quick-Switch™ Normalling. Digital Ready.

The next generation of Shorti Patchbays has arrived; this 2x48 audio patchbay is wired to DB25 connectors. This unit features exceptional flexibility with the Audio Accessories, Inc. exclusive Quick-Switch normalling system located on the rear of the panel. The Quick-Switch normalling allows you to set the individual normals on a per jack pair basis. This enables you to full-normal (FN), half-normal (HN) or non-normal (NN) by sliding the switches into the appropriate position. You also have grounding options: isolated, bussed, or grounds vertically strapped (GVS).

WDBP-961-SH

List Price $1,359.00 2x48x1RU (Order No. WDBP-961-SH)
Digital Ready, Most Common.




Drawings for WDBP-9615-SH



DB25 Interconnect Cables

Available in 6, 12 or 25ft lengths. All 8-pair cable is analog, individually jacketed and shielded, oxygen free and flexible. All DB25 connectors are heavy duty gold pins; all XLR’s and 297 plugs are Neutrik.

Order No. Price Order No. Price

DB25M/DB25M-6ft
DB25M/DB25M-12ft
DB25M/DB25M-25ft

$140.00
$155.00
$195.00

DB25M/MXLR-6ft
DB25Ma/MXLR-12ft
DB25M/MXLR-25ft

$155.00
$175.00
$195.00

DB25M/FXLR-6ft
DB25M/FXLR-12ft
DB25M/FXLR-25ft
$155.00
$175.00
$195.00
DB25M/TRS-6ft
DB25M/TRS-12ft
DB25M/TRS-25ft

$135.00
$145.00
$185.00

Need Digital Cables? No problem. All cables are available in 110 ohm digital cable. Simply add a “DIG” to the end of the number (Example: DB25M/MXLR-12ft-DIG)






MINI SHORTI Quick-Switch to DB25/3-Pin



MINI SHORTI
highlights

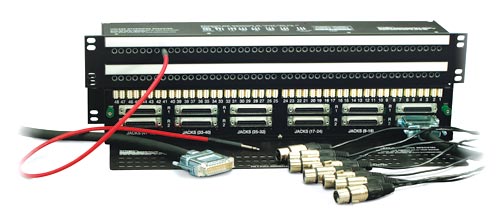

  • 2x48 MINI (Bantam/TT) Audio Patchbay.
  • Tip, Ring and Sleeve of each jack wired out to a DB25 Female
    connector (8 jacks in each).
  • DB-25 Connector pinned out for ProTools interface.
  • Reconfigurable normals and ground located on the rear of
    the unit.
  • Cabling support tray for bundling down incoming cables.
  • For use with analog or digital.

QUICK-SWITCH™
NORMALLING

SWITCH SETTINGS


FN = Full-Normalled
HN = Half-Normalled (Row 1 to Row 2)*
NN = Non-Normalled
GVS = Grounds Vertically Strapped
GB = Grounds Bussed (Row 1 and Row 2)*
* All units shipped Half-Normalled (HN) and Grounds Bussed (GB)

Download PDF of
"Quick-Switch"
Normalling switch Settings
Download Quick Switch
