List Price $1,216.00 2x48x1.5RU (Order No. WDB1E32-9615-SH)

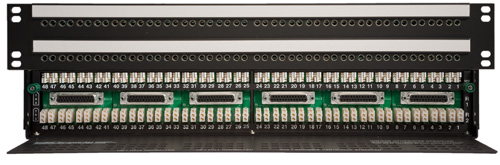

DB25s on Row 1, EDAC 3-Pin Connectors on Row 2
Quick-Switch Normalling Digital Ready Patchbay

At our customers' request, we’ve now incorporated two very popular connectors onto the same patchbay, thus giving you more flexibility when wiring your system. The DB25 connectors interface with a wide range of consoles and external gear, while the Edac 3-Pin connectors give you the option of individual signals off to designated locations. Both of these patchbays feature the exceptional flexibility of the Audio Accessories, Inc. exclusive Quick-Switch™ normalling system located on the rear of the panel. The Quick-Switch normalling allows you to set the individual normals and grounds on a per jack pair basis. This enables you to full-normal (FN), half-normal (HN) or non-normal (NN) by sliding the switches into the appropriate positon. You also can set grounding options via the same switches; isolated, bussed or grounds vertically strapped (GVS). At a later date if you need to change a normal or ground, it’s simple, just slide the switch to the desired position.



---

List Price $1,216.00 2x48x1.5RU (Order No. WE31DB2-9615-SH)

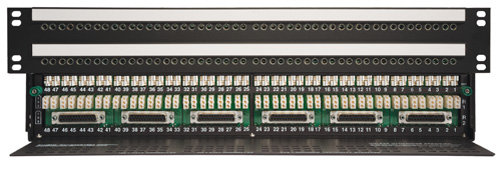

EDAC 3-Pin Connectors on Row 1, DB25s on Row 2
Quick-Switch Normalling Digital Ready Patchbay









MINI SHORTI
highlights

• 2x48x1.5RU MINI (Bantam/TT) Audio Patchbay.
• Tip, Ring and Sleeve of each jack wired out to a DB25 Female
  connector (8 jacks in each).
• DB-25 Connector pinned out for ProTools interface.
• Reconfigurable normals and ground located on the rear of
  the unit.
• Cabling support tray for bundling down incoming cables.
• For use with analog or digital.

QUICK-SWITCH™
NORMALLING
SWITCH SETTINGS

FN = Full-Normalled
HN = Half-Normalled (Row 1 to Row 2)*
NN = Non-Normalled
GVS = Grounds Vertically Strapped
GB = Grounds Bussed (Row 1 and Row 2)** All units shipped Half-Normalled (HN) and Grounds Bussed (GB)
