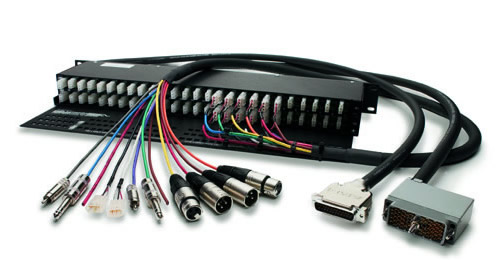

Dont
want to make your own interconnect cables? Let us

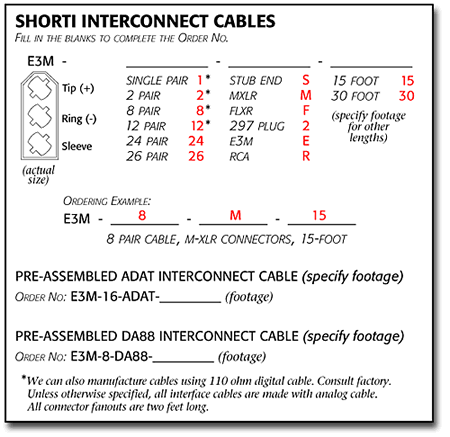

do it for you. Just use the chart below to specify
the cables you need to connect between the SHORTI
patchbay and your equipment. If you dont see
what you want, consult our factory or call your dealer.
We can manufacture just about any cable you want,
to any length you want, analog or digital.
When
specifying length, we strongly suggest that you plan
on leaving a one-foot service loop on the interconnect
cables at the rear of the unit for ease of pulling
the unit out from the front and changing the normals.

|
|
JUMPER
Options
Pre-made
jumper options for interfacing your SHORTI patchbays.

Y-Split
Bring two signals into one jack.

4-Way
Mult Jumper.
Internally connect the mains of four jacks together.

4-Way
Mult Jumper w/Signal Feeder.
Internally connect the mains of four jacks together,
then have the option to feed signal to them if desired.
|
