ADC/Canare/Kings/Trompeter





Video Technical Info


2x26x2RU (632D4P/SVJ-2TX)
Most common.

VDO2x26_2x24_2
2x26x2RU Front view. (632D4P/SVJ2TX)
2x24x1RU Rear view. (VJ2E241U/DVJB-W)

VDO_Cnr2x24Circle

2x24x1RU

VDOCnr2x24
2x24x1RU (VJ2E241U/DVJB-W)

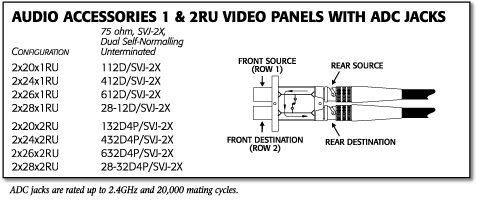

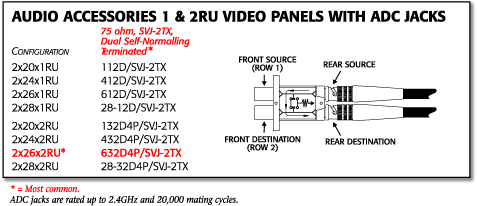

1 & 2RU Video Panels with ADC Jacks
  75Ω,
Dual Self-Normalling Terminated*
75Ω,
Dual Self-Normalling Unterminated
75Ω,
Single Unterminated
75Ω,
Single Terminated
Configuration Order No. Order No. Order No. Order No.
2x24x1RU 412D/SVJ-2TX 412D/SVJ-2X 412D/CJ2014N 412D/CJ2020N75
2x26x1RU 612D/SVJ-2TX 612D/SVJ-2X 612D/CJ2014N 612D/CJ2020N75
2x24x2RU 432D4P/SVJ-2TX 432D4P/SVJ-2X 432D4P/CJ2014N 432D4P/CJ2020N75
2x26x2RU* 632D4P/SVJ-2TX 632D4P/SVJ-2X 632D4P/CJ2014N 632D4P/CJ2020N75
* = Most Common



1 & 2RU Video Panels with CANARE Jacks
  75Ω,
Dual Self-Normalling Terminated*
75Ω,
Dual Self-Normalling Unterminated
75Ω,
Single Unterminated
75Ω,
Single Terminated
Configuration Order No. Order No. Order No. Order No.
2x24x1RU VJ2E241U/DVJB-W   VJ2E241U/DVJB-S
2x26x1RU VJ2E261U/DVJB-W   VJ2E261U/DVJB-S
2x24x2RU VJ2E242U/DVJB-W   VJ2E242U/DVJB-S
2x26x2RU VJ2E262U/DVJB-W   VJ2E262U/DVJB-S

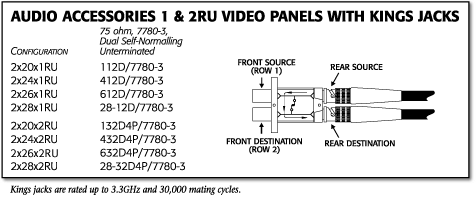

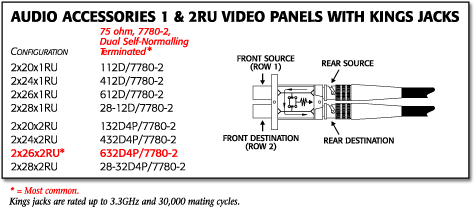

1 & 2RU Video Panels with KINGS Jacks
  75Ω,
Dual Self-Normalling Terminated*
75Ω,
Dual Self-Normalling Unterminated
75Ω,
Single Unterminated
75Ω,
Single Terminated
Configuration Order No. Order No. Order No. Order No.
2x24x1RU 412D/7780-2 412D/7780-3 412D/7520-9 412D/7520-10
2x26x1RU 612D/7780-2 612D/7780-3 612D/7520-9 612D/7520-10
2x24x2RU 432D4P/7780-2 432D4P/7780-3 432D4P/7520-9 432D4P/7520-10
2x26x2RU 632D4P/7780-2 632D4P/7780-3 632D4P/7520-9 632D4P/7520-10

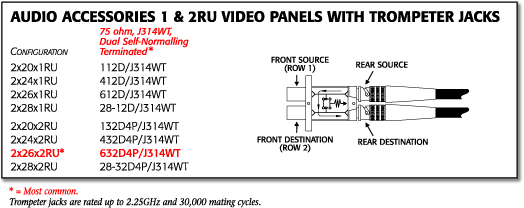

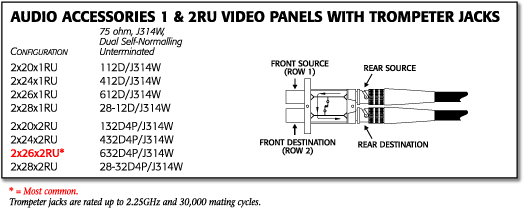

1 & 2RU Video Panels with TROMPETER Jacks
  75Ω,
Dual Self-Normalling Terminated*
75Ω,
Dual Self-Normalling Unterminated
75Ω,
Single Unterminated
75Ω,
Single Terminated
Configuration Order No. Order No. Order No. Order No.
2x24x1RU 412D/HDVDPT 412D/HDVDP 412D/J3W 412D/J13W-75
2x26x1RU 612D/HDVDPT 612D/HDVDP 612D/J3W 612D/J13W-75
2x24x2RU 432D4P/HDVDPT 432D4P/HDVDP 432D4P/J3W 432D4P/J13W-75
2x26x2RU 632D4P/HDVDPT 632D4P/HDVDP 632D4P/J3W 632D4P/J13W-75

ADC jacks are rated up to 2.4GHz and 20,000 mating cycles. Canare jacks are rated up to 3.0GHz and 30,000 mating cycles.Kings jacks are rated up to 3.3GHz and 30,000 mating cycles. Trompeter jacks are rated to exceed SMPTE 292M specifications and 30,000 mating cycles.



Dual Self-Normalled Terminated
When patched, these jacks route signals straight through, and any unused signal is terminated to a 75 ohm load. When unpatched, the rear source port is normalled to the rear destination port.

Dual Self-Normalled Unterminated
When patched, these jacks route signals straight through with no termination of unused signals. When unpatched, the rear source port is normalled to the rear destination port.

Single Unterminated
These jacks route signals straight through, with no normalling and no termination.

Single Terminated
When patched, these jacks route signals straight through. When unpatched, the rear port's BNC connection is terminated to a 75 ohm load.




2x26x2RU (632D4P/7780-2)
