32MV2/MCVJKSTW Dual, Normalled, Terminated Jacks Installed (Most Common)

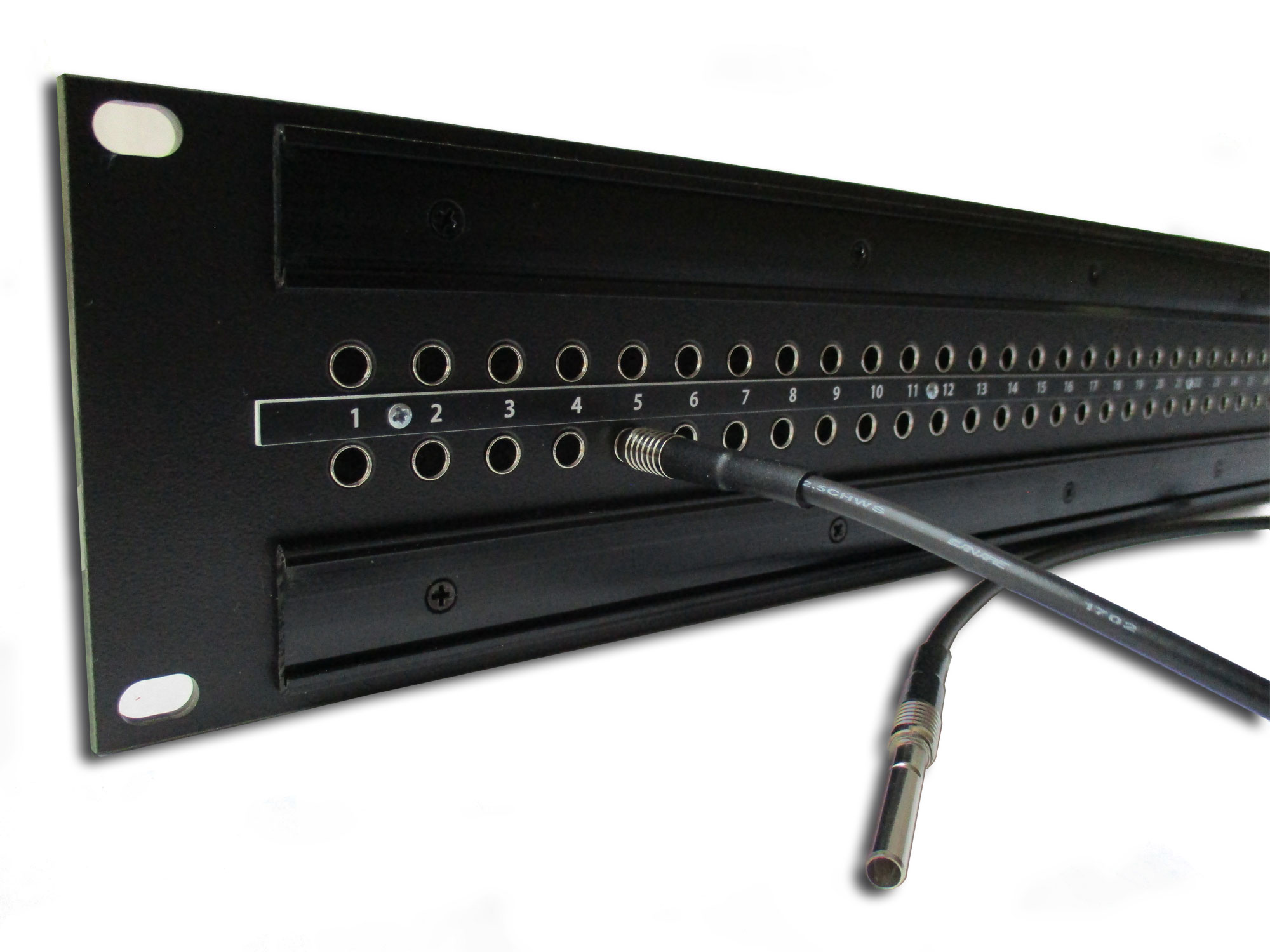

We now offer a 12G 2x32 Video Patchbay in 1RU, 1.5RU and 2RU options. These units incorporate the Canare micro video jacks, you have two options, the most common being a dual, normalled through terminating jack. The other option being a straight through jack (two singles with one cavity). On the back is a standard size BNC connector. Note- Unique Canare Micro video patch cords are required with these units. Cords are available in 2ft, 3ft and other custom lengths.




Ordering Numbers & Configurations

1RU     32MV1/MCVJKSTW 2x32x1RU with Dual, Normalled, Terminated Jacks Installed (Most Common)

1RU     32MV1/MCVJKSTS  2x32x1RU with Two independent single jacks in a dual housing

Download Quick Switch Download PDF OF 32MV1/MCVJKSTS


1.5RU  32MV15/MCVJKSTW 2x32x1.5RU with Dual, Normalled, Terminated Jacks Installed (Most Common)

1.5RU  32MV15/MCVJKSTS  2x32x1.5RU with Two independent single jacks in a dual housing

Download Quick Switch Download PDF OF 32MV15/MCVJKSTS


2RU     32MV2/MCVJKSTW 2x32x2RU with Dual, Normalled, Terminated Jacks Installed (Most Common)

2RU     32MV2/MCVJKSTS  2x32x2RU with Two independent single jacks in a dual housing

Download Quick Switch Download PDF OF 32MV2/MCVJKSTS
