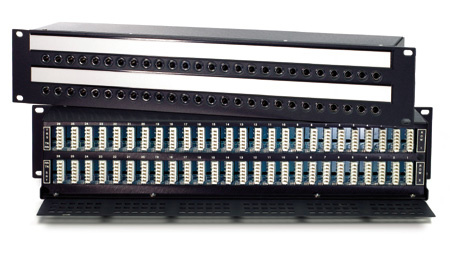

Inc., has developed its own line of prewired 1/4 Long-Frame
and MINI (TT/Bantam) punchdown patchbays wired to Krone IDC punchdown
contact terminals. We chose Krone based on its worldwide reputation
in the broadcast and telecommunications industries. On the 1/4

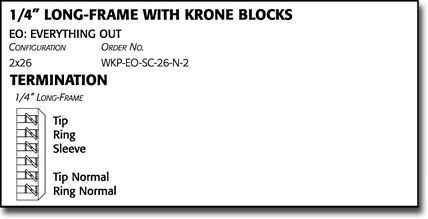

Long-Frame (MAXI) patchbay, Tip, Ring, Sleeve, and normals of
each jack are brought out to the PCB-mounted Krone contact terminal.

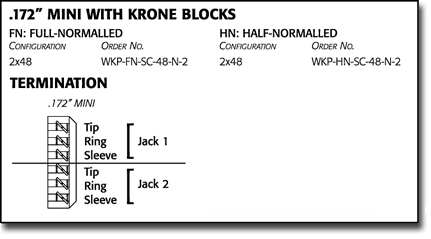

On the MINI patchbay, Tip, Ring, and Sleeve only are brought out
to the terminals with the normals configured internally on the
PC board. MINI
requires the Krone Punch-down Tool shown above (Order No. KPT-Tool).
wire your panel using AWG 22, 24, or 26 solid or stranded wire.
using the same AWG wire type on each terminal. (Max. two wires per
alternative punchdown system.
only in 2RU (3-1/2) self-contained chassis.
come standard with cabling support tray.
