1.5RU (2.6”)
Self-contained chassis.
Custom? No

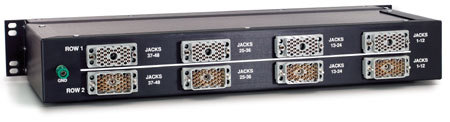

problem. Audio Accessories, Inc. has been manufacturing custom
patchbays for over 30 years. In the picture above, a standard
2x48 MINI jack panel is mounted on a 1.5RU(2.6”) chassis.
The customer requested two different-sex EDAC connectors (to separate
Row 1 from Row 2); Tip, Ring, and Sleeve only out to connectors;
normalled internally at the jacks. No one in the industry has
a better reputation than we do for making your patchbay the way
you want it. Below are other custom audio items.
Combination
XLR and Sub-D.
Not

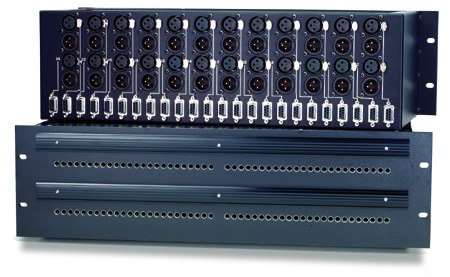

so standard, this 3RU (5-1/4”) panel has a combination of
XLRs and Sub-D 9-pin connectors. This is truly custom.
Multiple Connectors.

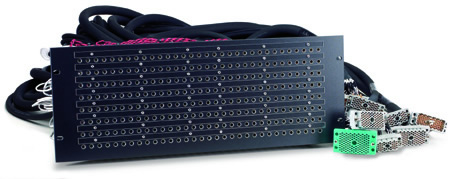

This 8x32 MINI panel was made for an OEM of audio consoles here
in the US. We put a number of different pair counts and connector
types on the unit, to allow plugging directly into the console
for easy installation. Back to top
Interconnect Backplate.
We’ve taken the ADC backplate and wired it to Sub-D 37-pin
connectors so that the end user can plug right into a router and
have all the terminations easily accessible for punching down.
Back
to top
Combination
EDAC and XLR.
This 2x32 2RU has Row 1 to a 90-pin EDAC and Row 2 off to a loose
multiconductor snake cable with XLR connectors. Normalling on
this unit is internal at the jacks. Another example of a custom
unit supplied to our customer’s specifications.
